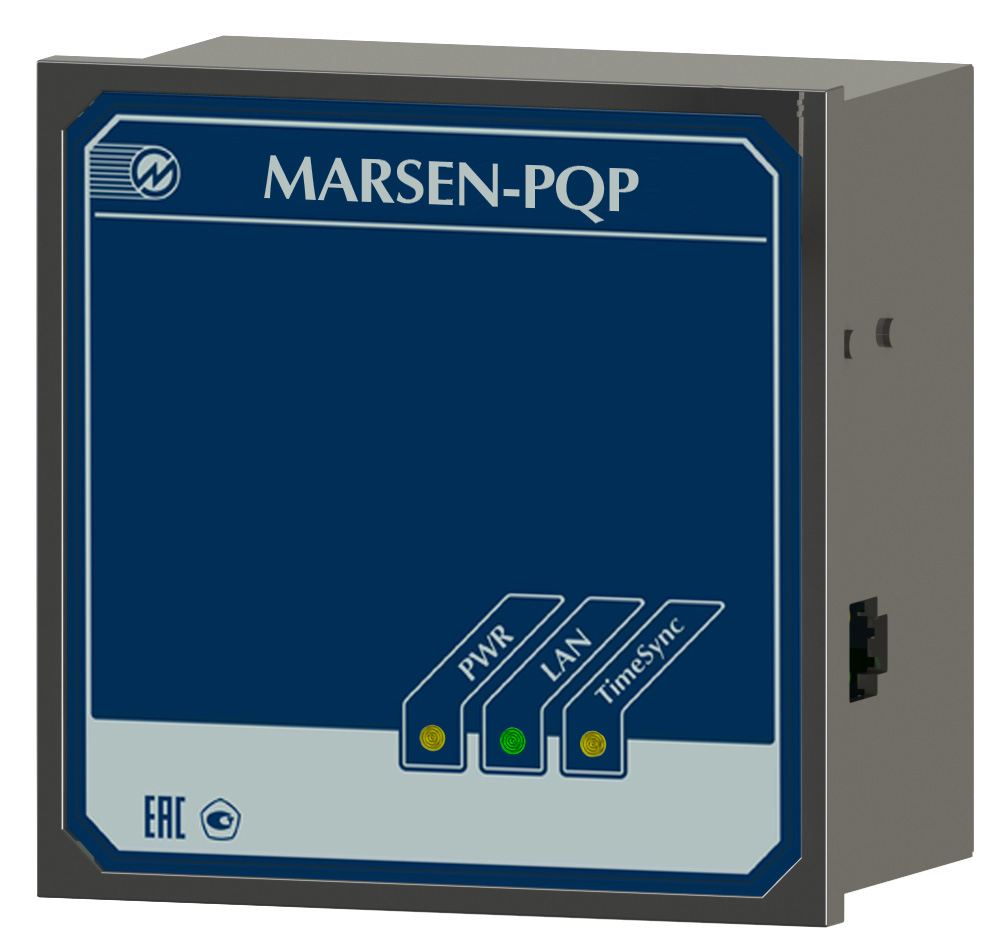

Power Quality Analyzer Marsen-PQP


Marsen-PQP is a power quality recorder and analyzer.


  • Measurement and monitoring of power quality parameters specified in IEC 61000-4-30 and IEC 61000-4-7 standards with further transfer of measurement results to a PC (power quality test reports according to EN 50160)
  • Measurement and monitoring of basic power quality parameters (PQP)
  • Measurement and monitoring of basic electrical network parameters

Field of application:

  • In power quality monitoring and control systems: permanent recording of power quality parameters and events on every cycle (can be installed at electrical substations of any voltage rating)
  • Monitoring of power consumption characteristics and power related parameter at “power-to-consumer” distribution points

Basic characteristics:


  • Three-phase AC voltage (50 Hz); Un = 57(100) Vor Un = 220(380) V
  • AC current (50 Hz); In = 1 A or In = 5 A (4 channels)

Interface - Ethernet 100 Mb/s.

Data exchange protocols:

  • РТР+NTP (synchronization to UTC)
  • WEB Interface – (configuring; data processing and analysis; generating test reports)
  • IEC 60870-5-104
  • Modbus TCP

Power supply (at customer's option):

  • Ethernet (PoE)
