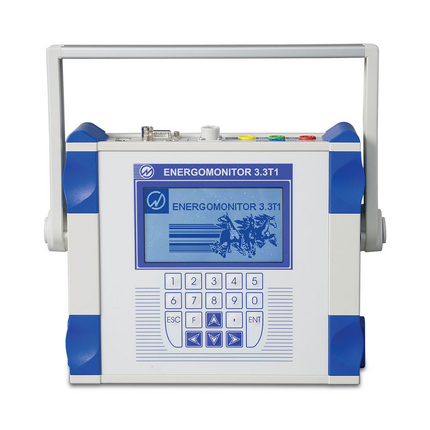

Energomonitor 3.3T1
Energomonitor-3.3T1
Multifunctional reference instrument for measuring electrical and power quality parameters
National registry Nо: 39952-08
Calibration interval: 2 years
Аccuracy class: 0.1
Purpose
 |
Measurement and logging (including waveform capturing) of main electrical parameters in single-/ and three-phase networks, including RMS voltage and current for both sinusoidal and distorted waveforms, as well as active, reactive, and apparent power |
|
Accuracy testing, calibration and verification of single- and 3-phase active and reactive energy meters on site, monitoring of their accuracy characteristics and checking the correctness of their wiring without breaking into the circuits |
|
Testing of current and voltage instrument transformers (in the comparator mode) |
|
Measuring load power in secondary circuits of instrument transformers and electricity theft detection |
|
Measuring amplitude and peak AC voltage (at a frequency of up to 500 Hz) in one or three channels, or in a differential channel; accuracy testing and calibration of peak voltmeters |
|
Measurement and logging of power quality parameters (PQP) |
Basic specifications:
|
Operating temperature range: -20...50°C |
|
Weight: 2 kg |
NOTE! We offer various training programs for users of Mars-Energo instruments and software.
Accuracy specifications
|
Measured parameters |
Measuring range |
Intrinsic measurement error |
|
|
Accuracy class 0.1 |
Accuracy class 0.5 |
||
| AC voltage |
0,6 to 360 V (Unom = 60, 120, 240, V) |
±0,01% | ±0,01% |
| AC current | 1 mА to 3500 А | ±0,01 % Inom =0,1; 1; 0,5; 5; 10; 50 |
±0,5..1,0 % Inom =10; 100; 300; 1000; 3000 |
|
Phase angle between fundamental harmonics of phase voltages or between fundamental harmonics of current and voltage in the same phase |
0° to 360° | Absolute | |
| ±0,1° | ±0,5° | ||
| Apparent power, VA |
0,1Unom to 1,2Unom 0,1Inom ≤ I < 1,2Inom |
Relative: | |
| ±0,2 % | ±2,0 % | ||
| Active power, W | Relative: | ||
| ±0,1 % | ±0,5 % | ||
| Reactive power, Var | 0,01Qnom to 1,44Qnom | Relative: | |
| 0 ≤ |sin φ| ≤ 0,45 | ±0,3 % | ±2,0 % | |
| 0 ≤ |sin φ| ≤ 0,9 | ±0,5 % | ||
| AC frequency, Hz | 45 to 75 Hz | Absolute: | |
| ±0,01 | ±0,01 | ||
Note: accuracy class 0.1 – when EM3.3T1 is equipped with CTB; accuracy class 0.5 – when EM3.3T1 is equipped with current clamps
