Energoforma 3.3-120M

Energoforma 3.3-120M

Source of AC current and voltage

Three-phase programmable current and voltage (phantom power) source

Purpose

The Source generates a single- or three-phase system of currents and voltages according to a user-specified model of signals used for accuracy testing of instruments measuring electrical energy values.

As part of the MTS ME Test System, the Source is suitable for testing a variety of energy meters.

Application

As part of a portable test system of MTS ME series, in conjunction with reference instruments such as Energomonitor 3.3T1 or Energomonitor 3.1KM, Energoforma 3.3-120M can be applied for testing:
Conventional and smart energy meters (including meters with power quality measurement function according to IEC 61000-4-30)
Instruments measuring electrical energy values with a nominal frequency of 400 Hz including on-board devices
Power quality analysers (IEC 61000-4-30, class A and S measurements)
Measuring converters

General specifications

Parameter

Value

In increments of

Voltage

3 ... 480 V

1 mV

Current

0.001 ... 120 A

0.1 mA

Frequency of the1st harmonic

40 ... 450 Hz

0.01 Hz

Phase shift between current and voltage (for all phases)

–179.99° ... +180.00°

0.01°

Power instability

0.05 %/min, or less



Output power:

Current source, VA

Voltage source, VA



60

30



AC power consumption

600 VA, or less

Operating temperature range

+10 to +35 °C

Length × Width × Height

555 × 430 × 220 мм

Weight

18 kg,
or less

Energoforma 3.3-120M vs previous model



Характеристика

Energoforma 3.3-100

Energoforma 3.3-120M

1

Output current

up to 120A

up to 120A

2

Output phase voltage

up to 268V

up to 480V

3

Harmonics of output signal

up to 50th

up to 50th

4

Output power per each current phase

180 VA (for currents from 11 to 120 A)
5 VA (for currents from 0.001 A to 10.9 A)

60 VA (for the whole voltage range)

5

Output power per each voltage phase

10 VA

30 VA

6

Fundamental frequency

45 to 70 Hz

40 to 450 Hz

7

Overall dimensions L х W х H

546 × 423 × 250 mm

555 х 430 х 220 mm

8

Weight

20 kg

18 kg

Software

Scope of supply

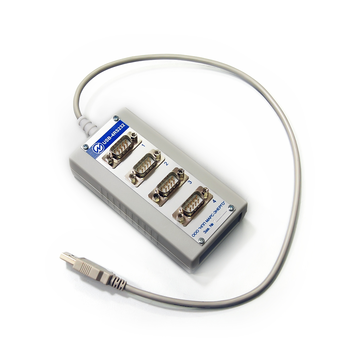

Converter USB-4RS232
An accessory for connecting up to 4 RS-232 devices to a PC via its USB port.

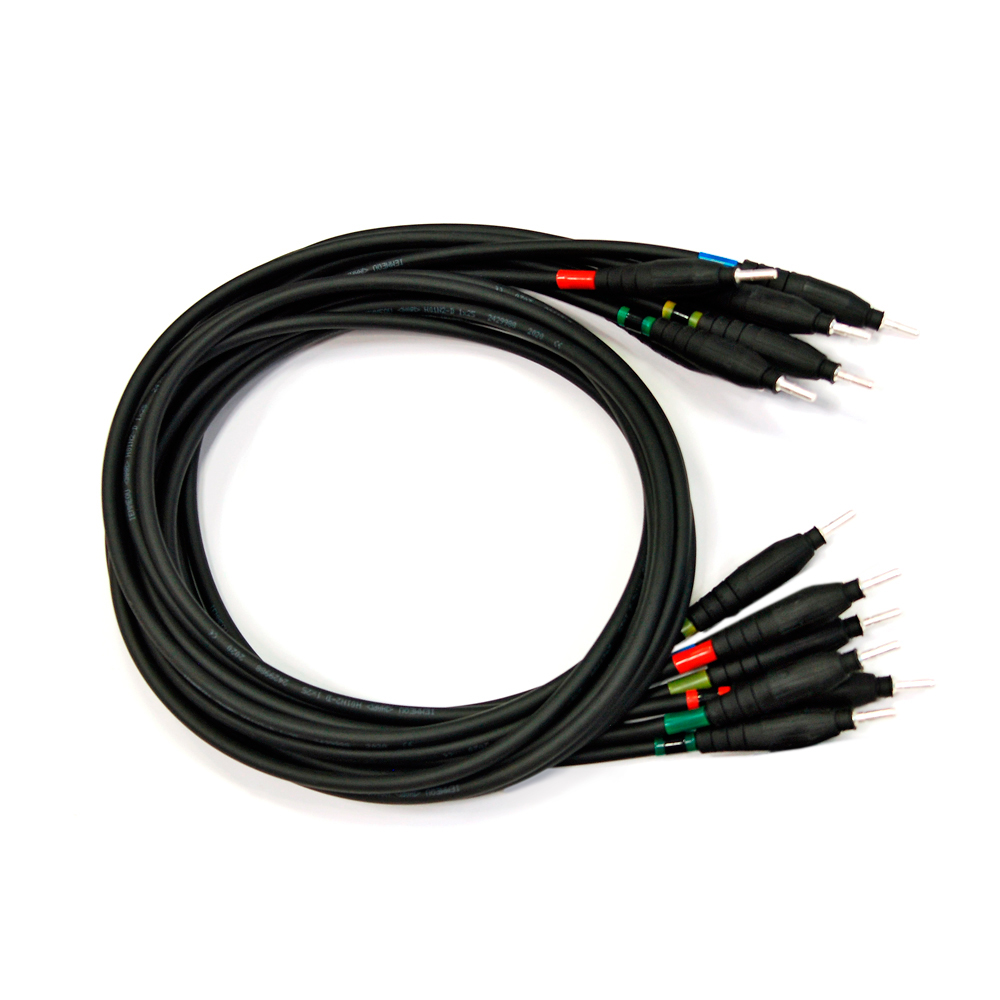

Set of cables “120 А”
Cables for connection to current outputs rated at “120 А” (2 m length) — 6 pcs

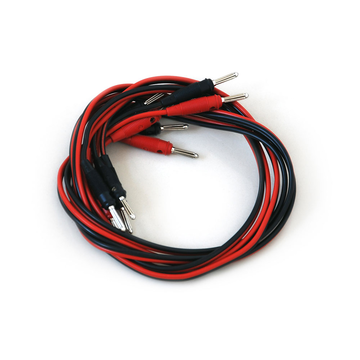

Set of cables “12 A”
Cables for connection to current outputs rated at 12 A (1 m length) — 3 pcs

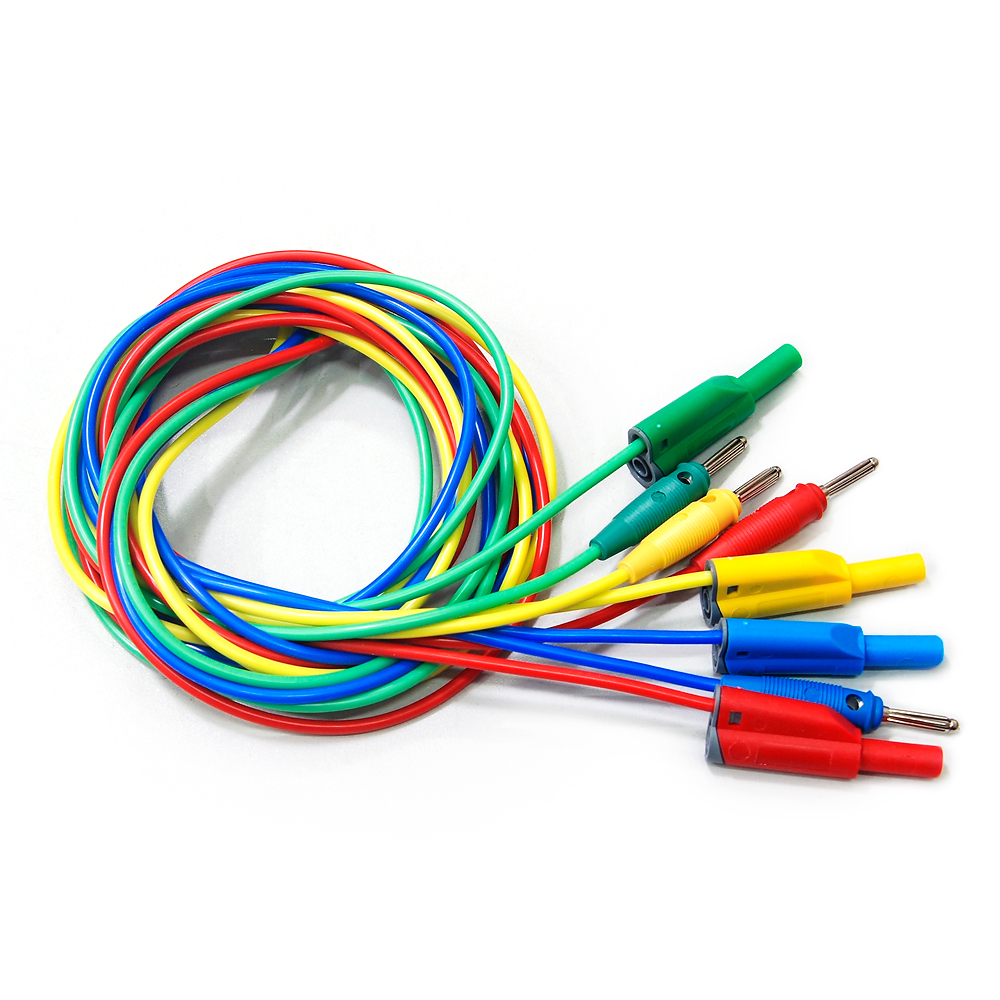

Set of voltage test leads
Colours: green, yellow, blue, and red

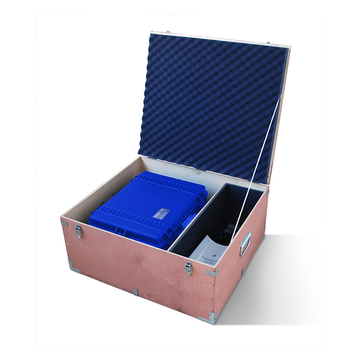

Transportation box EF 3.3-120M
A box for transporting Energoforma 3.3-120M and its accessories
