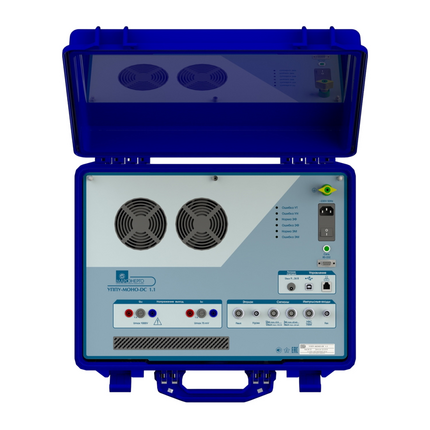

Portable test system for accuracy testing/calibration/verification of DC energy meters
Accuracy class: 0.1
Modifications
- MTS-MONO-DC-200 (200 A DC)
- MTS-МОНО-DC-500 (500 A DC)
- MTS-MONO-DC (without external current scaling converters)
Purpose
Test system is intended for on-site testing of:
- DC energy meters
- DC current, voltage and power converters
Application

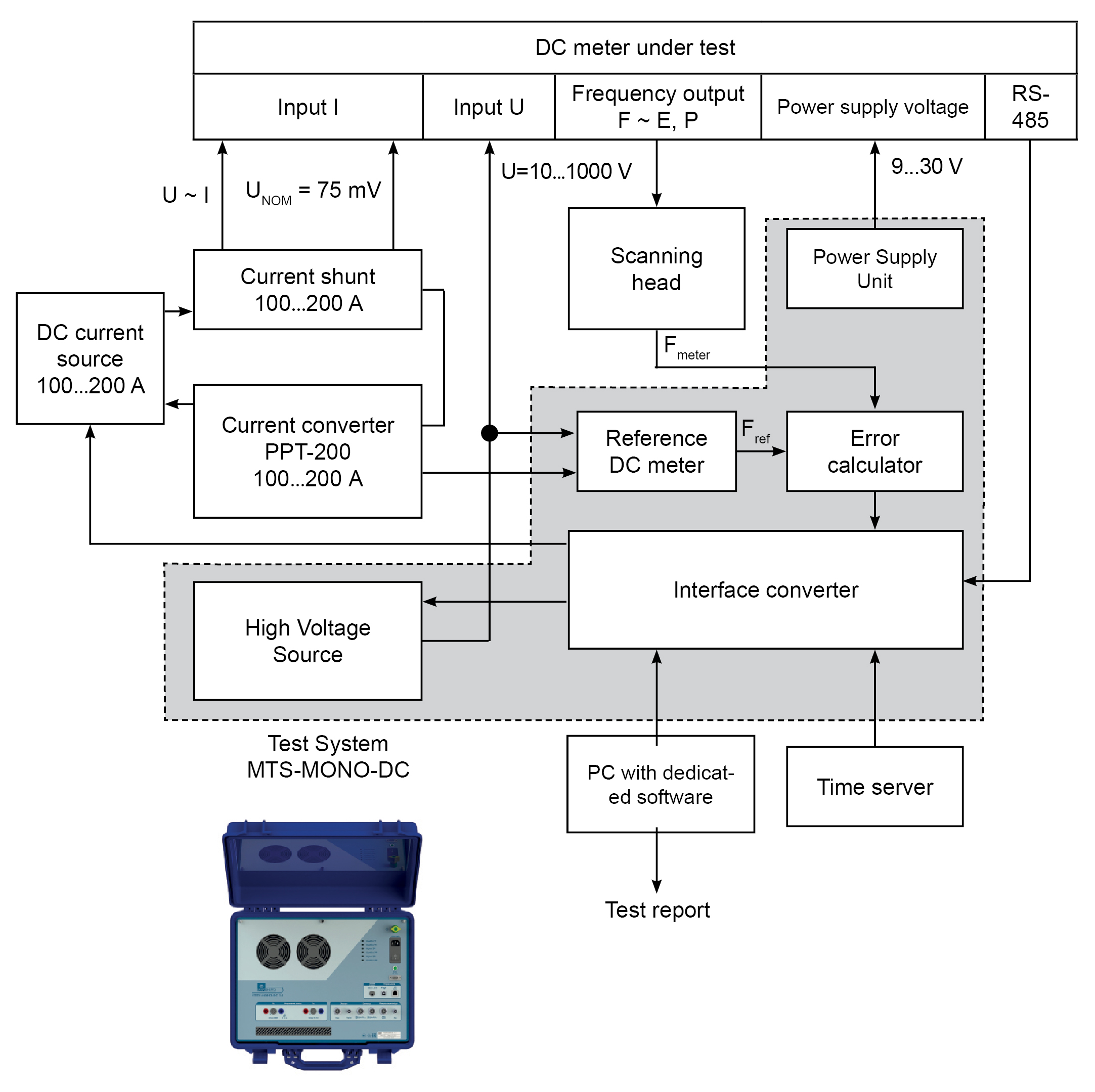

Testing DC meter with current shunt as a whole unit

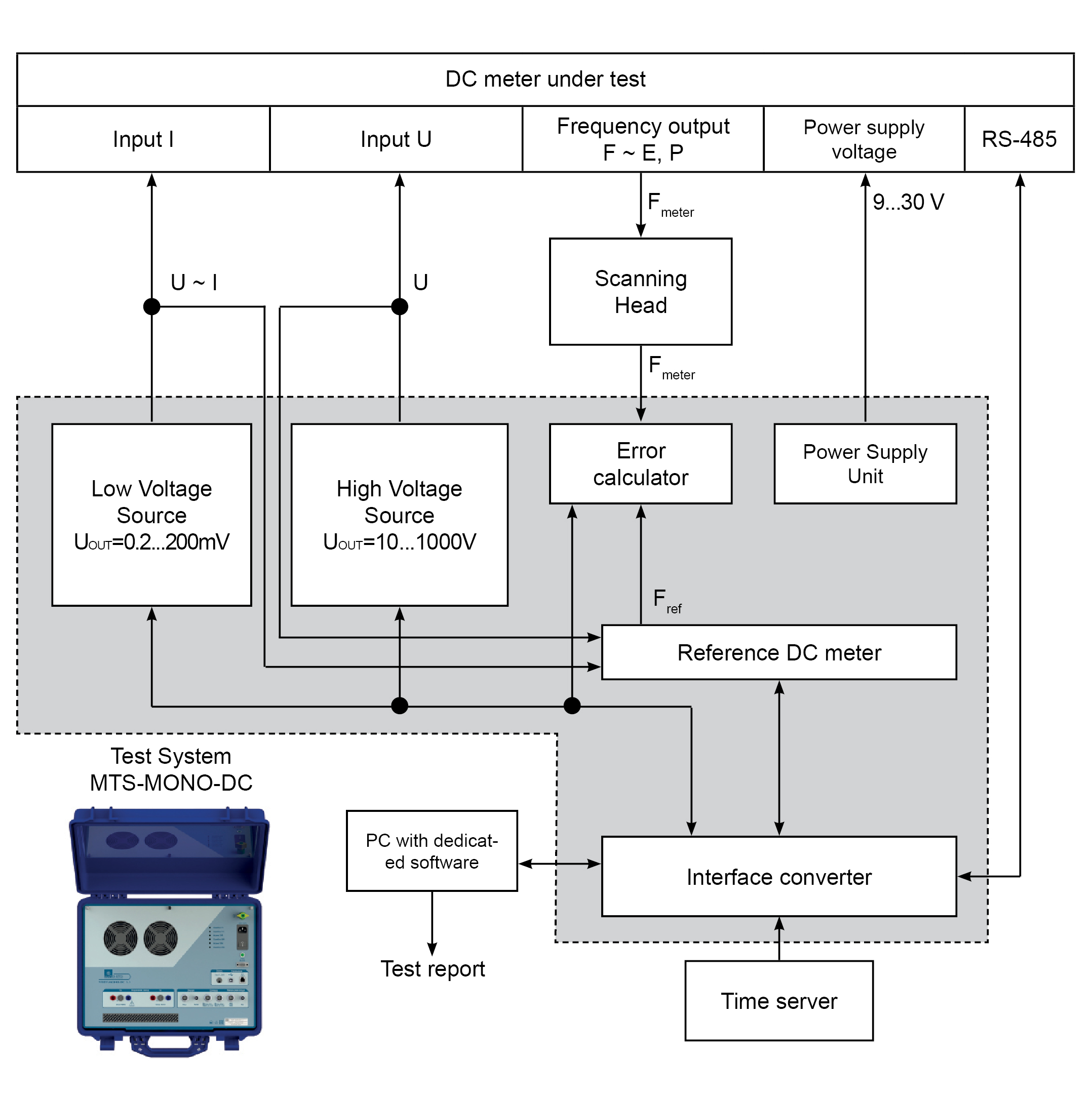

Testing DC meter without current shunt
Basic specifications
MTS-MONO-DC-200/500
(test signal source and reference meter)
|
Parameter |
Value |
|
DC current* |
1 ... 200/500 A |
|
DC voltage |
10...1200 V (max) |
|
DC voltage |
0.2 mV ... 10 V |
|
DC power |
Measurement error (relative) |
* With use of an external current scaling converter and current source (200/500 A)
Specifications for reference meter
(accuracy class 0.1)
|
Parameter |
Range |
Measurement error |
|
DC voltage |
10...1000 V |
Relative |
|
DC voltage |
0.2 mV ... 10 V |
±0.05 % + ∆ |
|
Power, W |
0.01UNOM...1.5UNOM |
Relative |
∆ – additional error.
Specifications for high-voltage DC source
|
Parameter |
Range |
Value |
|
DC voltage |
10...1000 V |
≤1 % |
|
Output power |
15 VA |
Specifications for low-voltage DC source
|
Parameter |
Range |
Value |
|
DC voltage |
0.2 mV...10 V |
≤1 % |
|
Output power |
5 VA |
Specifications for Current Measuring Converter PPT-200
|
Parameter |
Range |
Measurement error |
|
DC current |
1...200 A |
Relative |
Operating conditions
|
Ambient temperature |
From -10 to +40 °C |
|
Relative humidity |
Up to 80 % at 20 °C |
|
Atmospheric pressure |
From 84 to 106.7 kPa |
General specifications
|
Parameter |
Value |
|
Mains supply |
195 ... 253 V |
|
AC power consumption |
100 VA, or less |
|
Overall dimensions |
218 × 423 × 546 mm, |
|
Weight |
12 kg, or less |
Pulse input/output
|
Parameter |
Input |
Output |
|
Level |
5...15 V |
5 V |
|
Frequency (max) |
36 kHz |
18 kHz |
|
Duration |
> 14 µs |
10 ± 2 µs |
|
Constant |
1...999 999 999 imp/(kW • h) |
C = 144 • 108/(INOM•UNOM) imp/(W • h) |
Accuracy specifications
Accuracy specifications
(when testing DC meter with current shunt)
|
Parameter |
Range |
Measurement error |
Note |
|
DC voltage (high) |
10...1000 V |
Relative |
1200 V (max) |
|
DC current |
1...200 A |
±0.05 % + ∆ |
300 A (max) |
|
DC power |
10 W ...200 kW |
Relative |
Accuracy specifications for MTS-MONO-DC equipped with Low-Voltage Source
(when testing DC meter without current shunt)
|
Parameter |
Range |
Measurement error |
Note |
|
DC voltage (high) |
10...1000 V |
±0.05 % + ∆ |
1200 V (max) |
|
DC voltage (low) |
0.2 mV ... 10 V |
±0.05 % + ∆ |
|
|
DC power |
±0.1 % + ∆ |
Benefits
 |
Time of testing is minimized owing to fast connection technology and automatic control with ME-Service-DC software |
|
Testing of DC meter with or without current shunt is possible |
